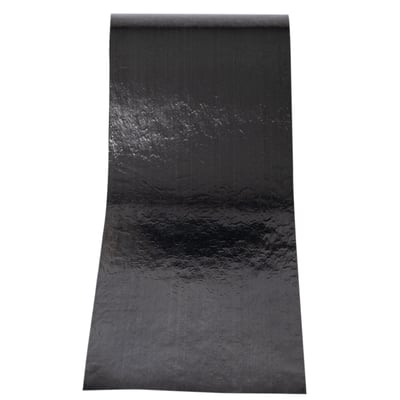

TeXtreme® Wide Spread Tow UD Tape

TeXtreme® Wide Spread Tow UD Tapes combine thin construction with a perfectly uniform fiber distribution across the width, resulting in improved mechanical properties compared to standard UD solutions. At the same time, they deliver higher manufacturing efficiency than conventional 20 mm tapes.

For prepreg manufacturers without UD creel capacity, wide dry UD can be directly processed through existing fabric impregnation lines, eliminating the need for complex UD setups while enabling high-quality UD prepreg production. The format also offers a cost-efficient alternative in cases where creeling hundreds of bobbins would otherwise be required, providing valuable flexibility.

Wide Spread Tow UD Tapes can be functionalized with integrated veils or binders to tailor performance. With straight fibers both in-plane and out-of-plane, and the ability to achieve thinner UD than many conventional lines allow, TeXtreme® sets a new benchmark in unidirectional tape technology.

Key Benefits

  •  Thin UD with uniform fiber distribution across the width for improved mechanical properties
  • Higher manufacturing efficiency than standard 20 mm tapes
  • Enables prepreg manufacturers without UD creel capacity to produce UD prepreg using standard fabric impregnation lines
  • Cost-effective solution when creeling hundreds of bobbins is impractical
  • Option to functionalize with veils or binders for tailored performance
  • Straight fibers in-plane and out-of-plane for optimal reinforcement
  • Thinner UD than many conventional UD lines can produce

Explore Configurations

View product specifications to find the ideal fit for your application.


Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.
Weights from

200 gsm

Fiber Type

Flax

Fabric Width

Up to 2000mm







Weave Pattern

PW
TeXtreme +- 45 Carbon_LE_upscale_balanced_x4
Weights from

25 gsm

Carbon Fiber Type

HS, IM, HM & UHM

Fabric Width

300 - 500 mm

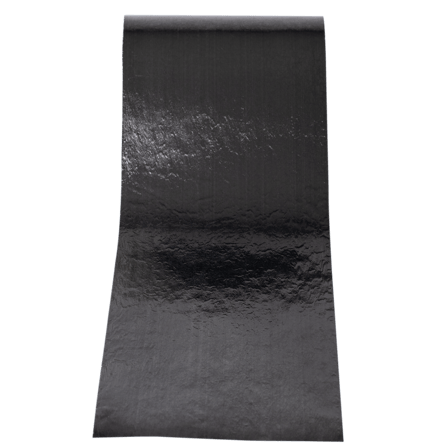

2023-03-07 Oxeon-003-Redigera
Article Description FAW (gsm) Areal Weight (gsm) Tape Width (mm)
5315
TeXtreme® UD HM 25

25
30
300
5267
TeXtreme® UD HS 37
37
42
343
5270
TeXtreme® UD HS 57
57
62
300
5298
TeXtreme® UD UHM 114
114
124
300

Find Other Products
Article Description FAW (gsm) TP Binder (gsm) Areal Weight (gsm)
1238
TeXtreme® +/-45 Flax 200

200
12
212
